Outdoor LED Display Module

Model	Module Size（mm）	Pixel Pitch（mm）	Module Resolution	Refresh Rate(Hz)	Brightness(cd/㎡)	Port type	Best viewing distance(m)
P2	320*160	2	160*80	3840/4k	≥5000	HUB75E	2-200
P2.5	320*160	2.5	128*64	3840/4k	≥5500	HUB75E	2-200
P3.076	320*160	3.076	104*52	3840/4k	≥5500	HUB75E	3-200
P4	320*160	4	80*40	3840/4k	≥5000	HUB75E	4-200
P5	320*160	5	64*32	3840/4k	≥5000	HUB75E	5-200
P6	192*192	6	32*32	3840/4k	≥5500	HUB75E	6-200
P8	320*160	8	40*20	3840/4k	≥4500	HUB75E	10-200
P10	320*160	10	32*16	3840/4k	≥4500	HUB75E	10-200

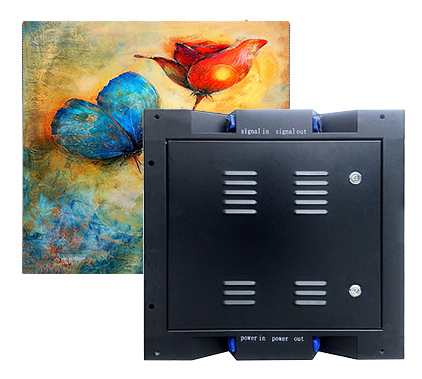

Outdoor LED Display Set

Model	Cabinet Size(mm)	Cabinet Weight(kg)	Cabinet Resolution	Working Temperature	Working Voltage	Average Power Consumption(≈W/m² )	Max.Power Consumption(≈W/m² )	Control Method
P2	960*960	17	480*480	Storage:-35℃～+85℃ Working:-20℃～+50℃	110V/220V±10%	350	1000	Windows/App
P2.5	960*960	17	384*384	Storage:-35℃～+85℃ Working:-20℃～+50℃	110V/220V±10%	350	1000	Windows/App
P3.076	960*960	17	312*312	Storage:-35℃～+85℃ Working:-20℃～+50℃	110V/220V±10%	350	1000	Windows/App
P4	960*960	17	240*240	Storage:-35℃～+85℃ Working:-20℃～+50℃	110V/220V±10%	240	800	Windows/App
P5	960*960	17	192*192	Storage:-35℃～+85℃ Working:-20℃～+50℃	110V/220V±10%	240	800	Windows/App
P6	960*960	17	160*160	Storage:-35℃～+85℃ Working:-20℃～+50℃	110V/220V±10%	240	800	Windows/App
P8	960*960	17	120*120	Storage:-35℃～+85℃ Working:-20℃～+50℃	110V/220V±10%	240	800	Windows/App
P10	960*960	17	96*96	Storage:-35℃～+85℃ Working:-20℃～+50℃	110V/220V±10%	240	800	Windows/App

High – Performance Outdoor LED Display Product Introduction

Our outdoor LED display offers an excellent solution for your outdoor visual display needs.

I. Diverse Specifications to Meet Multiple Requirements

Our products come in a wide range of specifications, including P2, P2.5, P3.076, P4, P5, P6, P8, and P10. With different dot pitches, they are suitable for various scenarios. For example, the P2 display, with its high resolution, is ideal for display scenarios with extremely high requirements for picture details, such as high – end commercial advertising displays. The P10 display can remain clearly visible in large – area displays and long – distance viewing situations, and is often used for large – scale outdoor advertising, sports event live broadcasts, etc.

II. Ultra – High Refresh Rate for a 4K Visual Feast

Featuring an ultra – high refresh rate of 3840Hz/4K, whether it is fast – moving pictures or dynamic video content, it can be presented smoothly without any ghosting or 卡顿现象. This allows the audience to enjoy a clear and smooth visual experience from any viewing angle, perfectly meeting the requirements of scenarios with extremely high demands for picture fluency, such as large – scale event live broadcasts and commercial advertisement broadcasts.

III. High Brightness, Still Clear under Strong Light

With a brightness of up to 5500cd/㎡, the screen content remains clearly visible even in direct sunlight outdoors. This enables the display to effectively convey information and attract the attention of the audience under various complex lighting conditions. Whether in a bustling commercial street or a sunny square, it can perform its display tasks excellently.

IV. Energy – Saving and Environment – Friendly, a Green New Choice

Adopting advanced energy – saving technologies, the product has low power consumption. While reducing operating costs, it also actively responds to the call for energy conservation and environmental protection. Long – term use can not only save you electricity expenses but also reduce the burden on the environment, making it an ideal choice for those who attach importance to environmental protection and economic benefits.

V. Easy Installation, Maintenance, and Repair

The product design fully considers the convenience of installation and maintenance. The easy – to – install structure reduces installation time and labor costs. At the same time, maintenance and repair are also very convenient. When problems occur, they can be quickly located and solved, greatly reducing the difficulty and cost of 后期维护，ensuring the long – term stable operation of the display.

Choosing our outdoor LED display means choosing a high – quality, high – performance, and cost – effective visual display solution, adding luster to the development of your business.
