LED Holographic Invisible Display

The overall structure is fixed without frame, and the lamp board is made of PCB board with a hollow mesh circuit on the surface. The thickness of the screen is less than 2mm, light and thin, and can be bent and cut. It is flexible and skillful to use, seamlessly integrated when mounted on transparent glass. Adopting self-developed chips with strong driving performance, coupled with high-quality materials and high standard craftsmanship, the sensory permeability of the entire series of products can reach over 80%.

The product is widely used in commercial display windows, commercial curtain walls, exhibition halls, creative displays, entertainment and tourism, automobile sales service stores, and other fields.

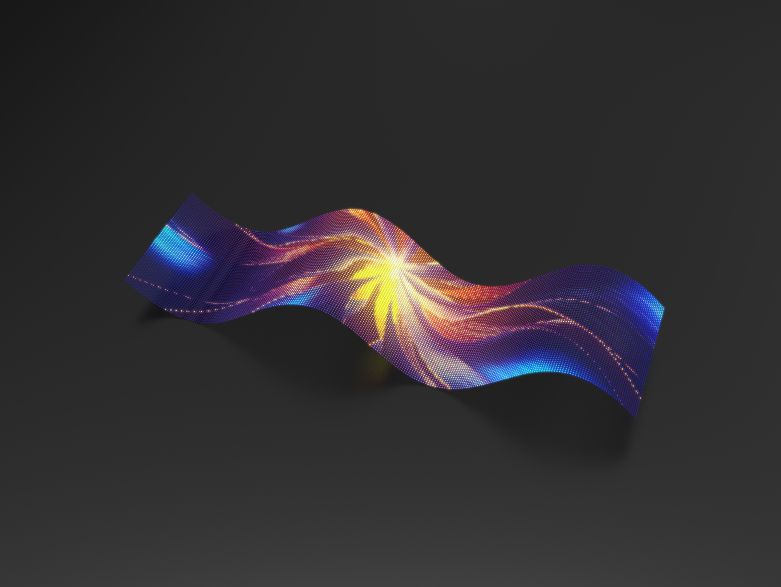

Using a bendable PCB light board, the LED holographic screen module can be bent at different angles according to the environment to achieve the best display effect and preserve the original environment.

Description

Different Size LED Holographic Invisible Screen

P2.5 P3.91 P6.25 P10
Pixel Pitch2.5*2.5mm3.91*3.91mm6.25*6.25mm10*10mm
Pixel Density160,000Pixels/m²65,536Pixels/m²25,600Pixels/m²10,000Pixels/m²
Resolution50*400Pixels/50*480Pixels64*256Pixels/64*307Pixels40*192Pixels/40*240Pixels25*100Pixels/25*150Pixels
Screen Visual Permeablity70%80%90%93%
Brightness≥1,800cd/m²≥3,000cd/m²≥5,000cd/m²≥5,000cd/m²
Peak Power800W/m²1000W/m²1000W/m²1000W/m²
Average Power350W/m²370W/m²370W/m²370W/m²
Horizontal/Vertical Viewing Angle140°/140°140°/140°140°/140°140°/140°
Highest Contrast Ratio4,000:14,000:14,000:14,000:1
Protection LevelIP20IP20IP20IP20
Frame Frequency/3D Frame Frequency60Hz /120Hz60Hz /120Hz60Hz /120Hz60Hz /120Hz
Refresh Rate≥3,840Hz≥3,840Hz≥3,840Hz≥3,840Hz
Color Temperature2,000-9,500K2,000-9,500K2,000-9,500K2,000-9,500K
Working VoltageAC:110V~240V､50~60HzAC:110V~240V､50~60HzAC:110V~240V､50~60HzAC:110V~240V､50~60Hz
Operating Temperature-10-60℃-10-60℃-10-60℃-10-60℃
Operating Humidity10%-90%RH10%-90%RH10%-90%RH10%-90%RH
Installation methodGlass Pasting / Hanging / Inner Arc Installation / Supporting Cutting, Bending



Product Screen Structure





Module Installation Method

(Customizable Installation Method)

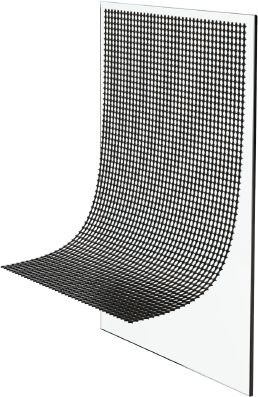

①Directly paste onto the glass surface

The back of the LED holographic invisible screen is covered with special adhesive, which can be directly attached to the glass surface with strong adhesion.

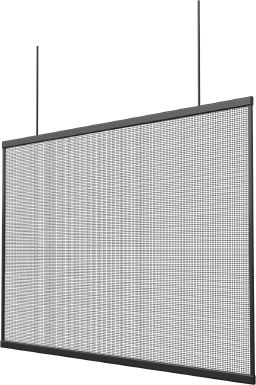

② Hanging display

Multiple modules are spliced together and suspended in space to create a suspended 3D effect.





Application Scenarios

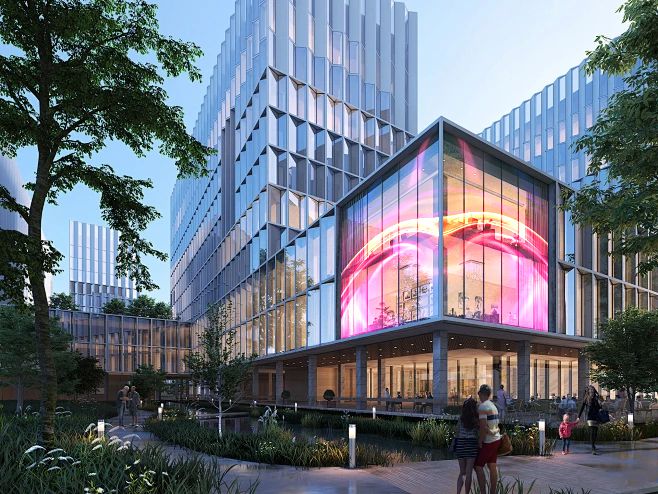

Building Curtain Wall

Enhancing the aesthetics and modernity of building curtain walls, achieving a perfect balance between transparency and display effects.















Concourse

Bring a sense of technology to the airport lobby, transmit information in real-time, enhance commercial display, and improve brand image and service quality.

















Automobile 4s Store

Enhance the sense of technology and visual effects, showcase car details and promotional activities, and showcase the intelligence and fashion of modern car sales.













Commercial Centre

Enhance brand image and shopping experience, attract customers with unique transparent display effects, and improve guidance efficiency.
