108″ Conference All-in-One Machine

  • One-key switching of multiple signals for rapid screen switching.
  • Support for multi-terminal interaction and 4-way split-screen independent screen sharing.
  • Built-in customized Android 11 system with smooth operation and powerful functions.

Description

108-inch Conference All-in-One Machine Series

Pitch (mm)0.780.931.251.561.872.5
PixelReal PixelVirtual-Real Combination
Board Size (mm)150*168.75300*168.75
Resolution192*216320*180240*135192*108160*90120*68
Scan Method1/541/541/601/271/541/451/40
Surface Hardness4H
Surface ProcessMatte Surface
Screen Size(mm)2400*1350

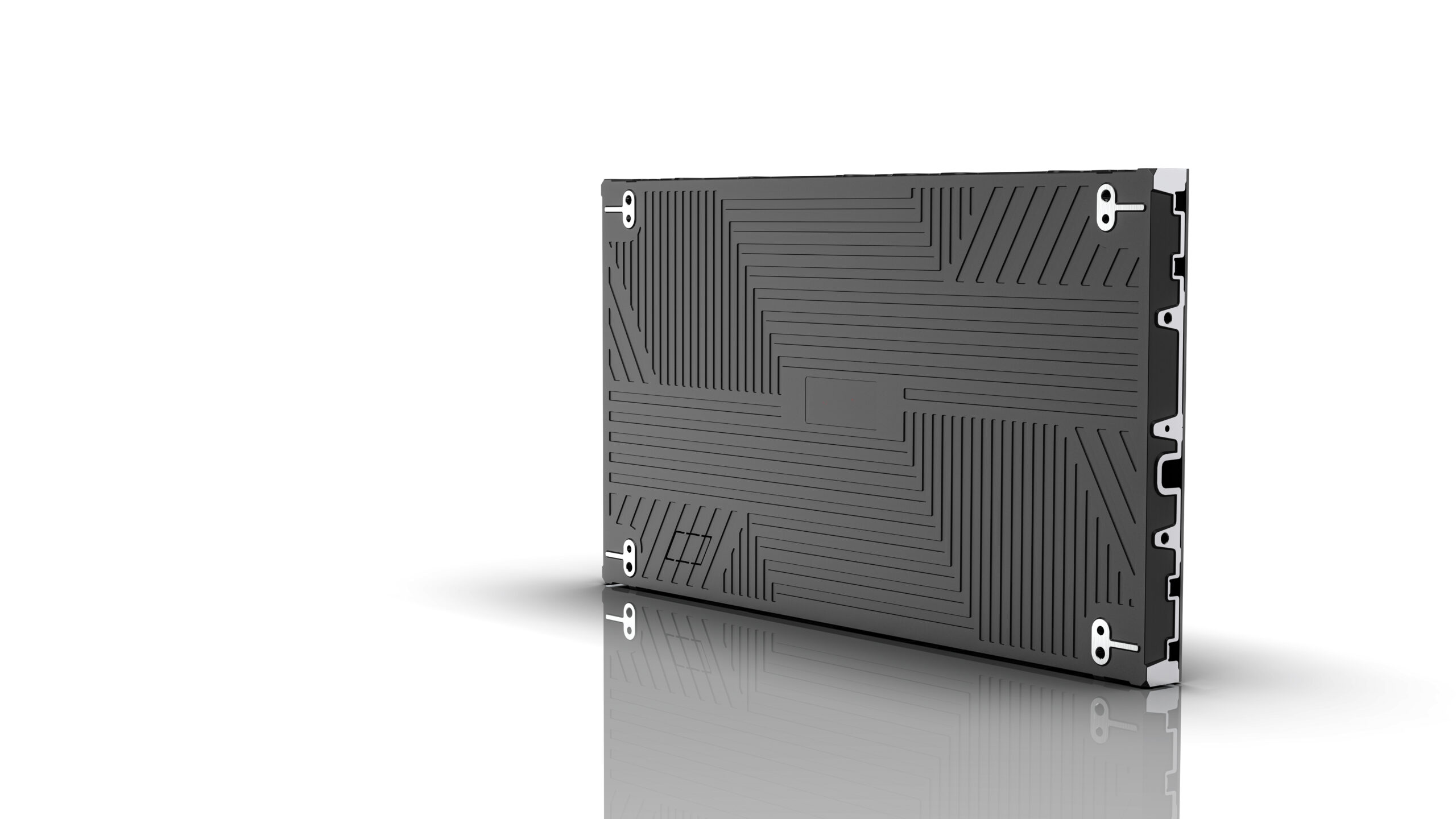

Unit Size (mm)600*337.5*35.5
Unit WeightApproximately 4KG
Unit Resolution768*432640*360480*270384*216320*180240*136
Pixel Density /㎡16384001137777640000409600284444161186
Screen Resolution3072*17282560*14401920*10801536*8641280*720960*544
Flash Correction StorageSupport
Control SystemNova
White Balance BrightnessStandard 600nits1200nitsStandard 600nits
Refresh Rate3840Hz
Contrast Ratio10000:1
Color Temperature9300K
Viewing Angle160°
Input VoltageAC100~240V 50/60Hz
Single Cabinet Power75W75W70W120W70W65W56W
Maximum Power1200W1200W1120W1920W1120W1040W896W

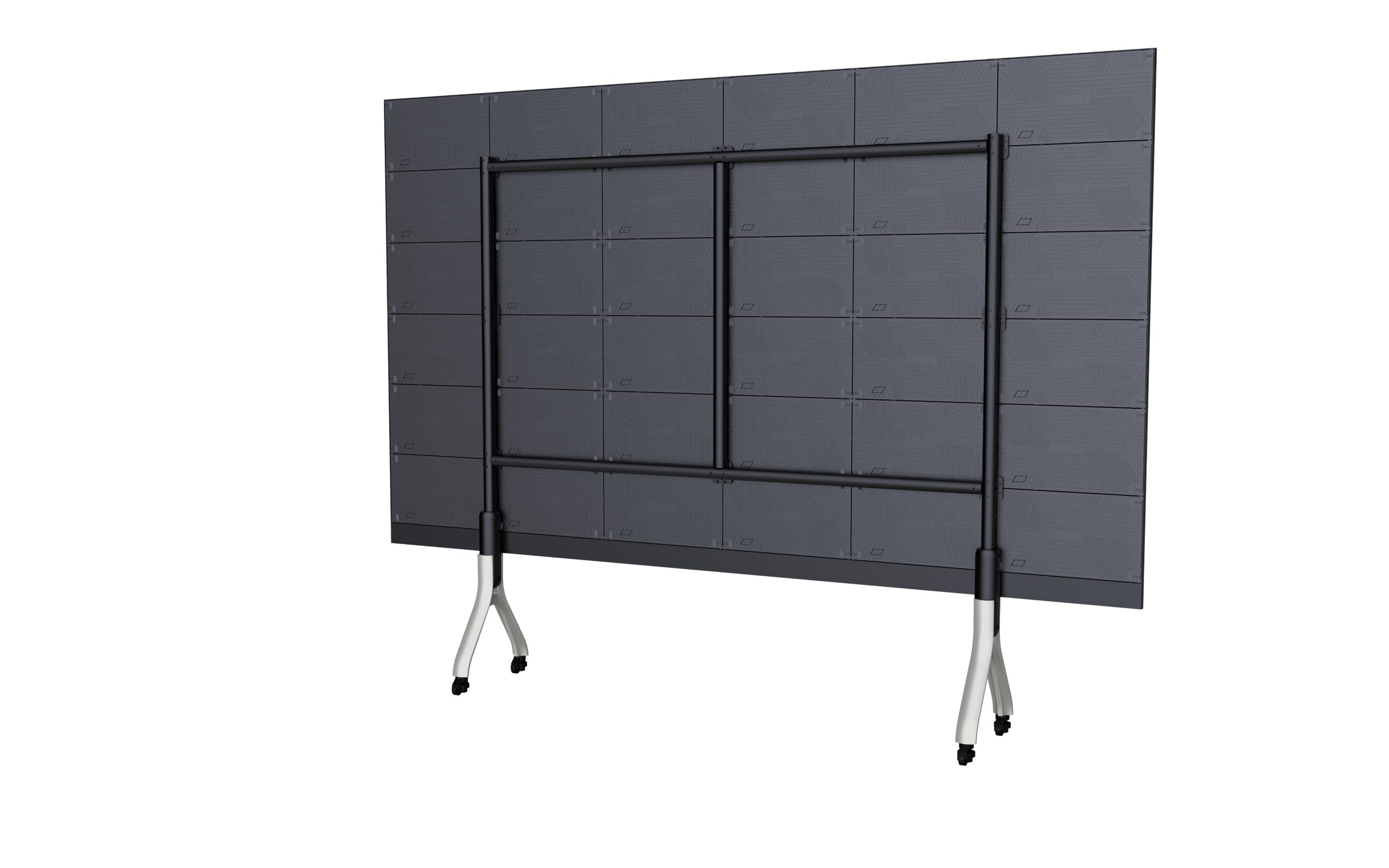

Installation / Maintenance MethodFront and Rear Installation / Front Maintenance
Protection Level of BoardIP54 (Surface Can be Cleaned with Clean Water)
Operating Temperature-10°C~+60°C
Operating Humidity10%RH~90%RH
Storage Temperature-20°C~+60°C
Storage Humidity10%RH~90%RH



Product Features

Convenience

  • One-key switching of multiple signals for rapid screen switching.
  • Support for multi-terminal interaction and 4-way split-screen independent screen sharing.
  • Built-in customized Android 11 system with smooth operation and powerful functions.

Instant Creation

Infrared touch control enables simpler, more efficient operation and quick creation.

Comfort

One-key activation of the eye protection mode. The system effectively reduces harmful high-energy short-wave blue light, protecting eyes during long-term viewing.

Intelligence

Specifically designed for conference scenarios, it provides 4 scene modes. Whether it is document presentation, video playback, or remote conferencing, it can match the best display effect for a comfortable experience.

Multi-functional Integration

Integrates functions such as projection, display, audio, camera, and microphone, reducing the number of devices and simplifying conference setup.

Excellent Display

Better rules and colors result in a more delicate and realistic image, with details clearly presented even at low brightness.
